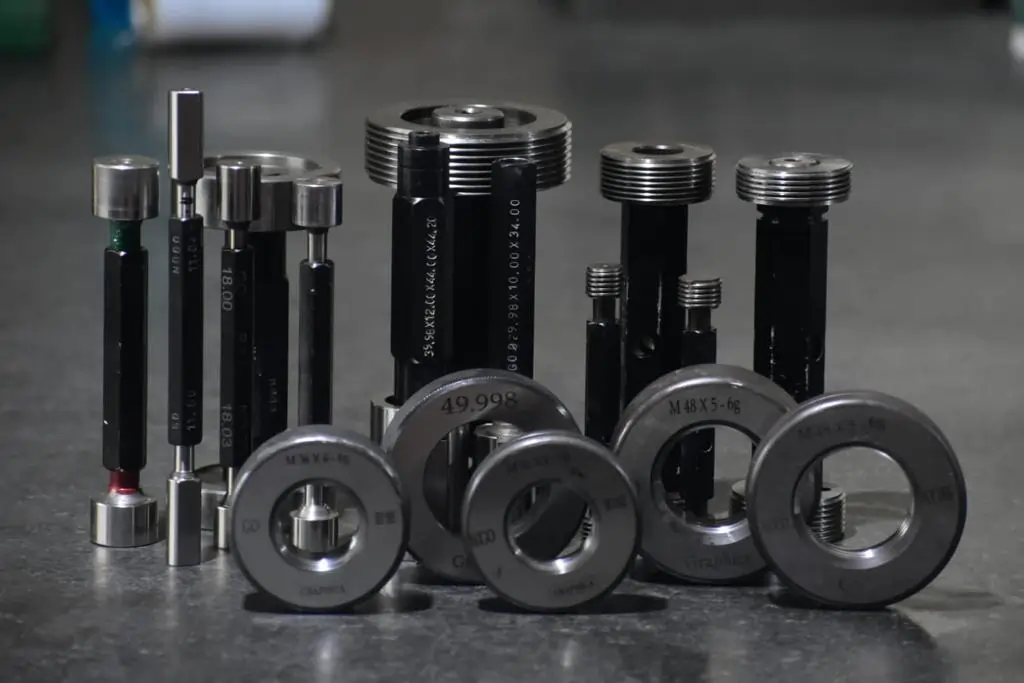

Keyway Gauge Manufacturer Ahmedabad
Raj Engineers India is a leading Keyway Gauge Manufacturer Ahmedabad, offering high-precision gauges designed for accurate inspection of keyways in shafts, hubs and mechanical components. This page provides complete technical and application-level information to help buyers, engineers and quality teams understand keyway gauges in detail.
Experience
Years of Experience
Team Members
Happy Clients

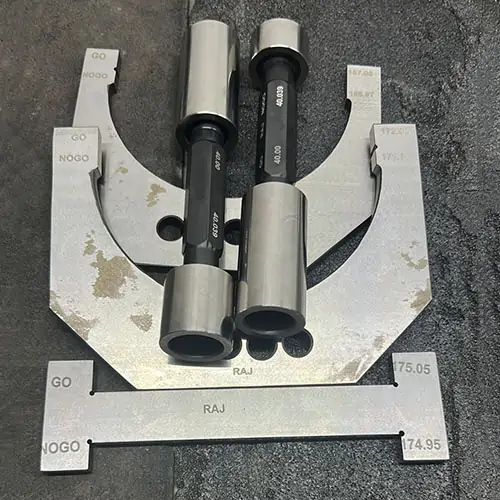

What is a Keyway Gauge?
A keyway gauge is a precision measuring tool used to check the width as well depth and alignment of keyways in shafts and mating components. It ensures that the keyway dimensions meet tolerances that are set also allowing proper fitment of keys and smooth power transmission.
Keyways are critical in mechanical assemblies where torque needs to be transferred between rotating parts. Even a small deviation in keyway size can lead to misalignment also vibration or component failure and this is where a high quality keyway gauge becomes essential.
Keyway gauges are also commonly referred to as
Keyway Gauge Manufacturer in Ahmedabad & Gujarat
As a trusted Keyway Gauge Manufacturer Ahmedabad, Raj Engineers India serves clients across Ahmedabad, Gujarat, and all over India. Our gauges are widely used in local industries such as:
Industries Served:
- Automotive manufacturing units in Gujarat
- Textile machinery manufacturers in Ahmedabad
- Heavy engineering and fabrication industries
- CNC machining and precision component manufacturers
Being located in Ahmedabad, a major industrial hub, allows us to provide faster delivery, better customization, and strong technical support.
Types of Keyway Gauges
Fixed Keyway Gauge
Used for standard inspection where dimensions are predefined.
Adjustable Keyway Gauge
Designed for flexible measurement of varying keyway sizes.
Go / No-Go Keyway Gauge
Used for quick inspection to check tolerance limits in production.
Special Purpose Keyway Gauge
Custom-designed gauges for specific industrial applications.
Technical Specifications
| Parameter | Details |
|---|---|
| Material | High-grade tool steel (Hardened & tempered) |
| Hardness | 58–62 HRC |
| Accuracy | ISO / DIN standards with tight tolerances |
| Surface Finish | Precision ground for smooth finish |
| Size Range | Standard & customized sizes available |
| Calibration | Calibration reports available on request |
Features of Keyway Gauges
High Dimensional Accuracy
Excellent Wear Resistance
Long Service Life
Easy to Use & Handle
Production & Inspection Use
Consistent Industrial Performance
Benefits of Using Keyway Gauges
Key Benefits
Proper fitment
Ensure seamless assembly of mechanical components.
Improved quality
Maintains consistency in production and reduces rejection rates.
Reduced downtime
Minimize machine stoppages through accurate gauging.
Faster inspection
Helps in quick checking during mass production.
Cost savings
Prevent wastage and reworks with accurate measurement.
Industrial Applications

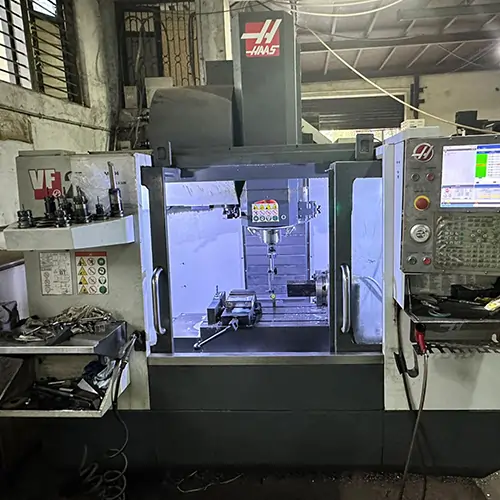

Manufacturing Process
Raw material selection
Choosing high-grade tool steel for durability.
CNC machining
Precision shaping using advanced CNC centers.
Heat treatment
Achieving 58-62 HRC hardness for wear resistance.
Grinding & finishing
Achieving precision ground surface finish.
Final inspection
Stringent check in our CMM inspection facility.
Quality Assurance
Why Choose Raj Engineers India
Custom Keyway Gauge Solutions
We understand every project has unique requirements. Our engineering team provides complete customization to meet your exact specifications.
Serving Clients Across Major Cities in India
Conclusion
Keyway gauges are essential tools for ensuring dimensional accuracy and proper functioning of mechanical assemblies. Choosing a reliable manufacturer ensures long-term performance with accuracy and cost efficiency.
Raj Engineers India delivers precision-engineered keyway gauges designed to meet modern industrial requirements with consistency and reliability.
FAQs - Keyway Gauge
- Automotive
- Textile machinery
- CNC & fabrication
- Heavy engineering
- Pumps & motors
High precision as per ISO/DIN standards with tight tolerances.
Ensures consistency, reduces rejection, and improves product quality.
Yes, across Gujarat and all major industrial locations in India.
- Experience
- Quality standards
- Customization
- Material quality
- Delivery reliability
Used to measure width, depth, and alignment of keyways for proper assembly.
Ensures proper fitting, smooth transmission, and prevents mechanical failure.
- Fixed
- Adjustable
- Go / No-Go
- Special purpose
Yes, as per drawings, samples, and tolerance requirements.
High-quality hardened tool steel for durability and wear resistance.
